СММ-0,001U Laboratory Oil Filtration Unit
The purpose of the laboratory СММ-0,001U unit is to test the possibility of purifying a specific petrochemical product.
The types of mineral oil which can be regenerated & filtered, among others, are:
- industrial oil;
- transformer oil;
- turbine oil;
- diesel oil;
- heating oil;
- hydraulic oil;
- vacuum oil;
- essential oil;
- transmission oil;
- gas condensate;
- kerosene.
DESIGN

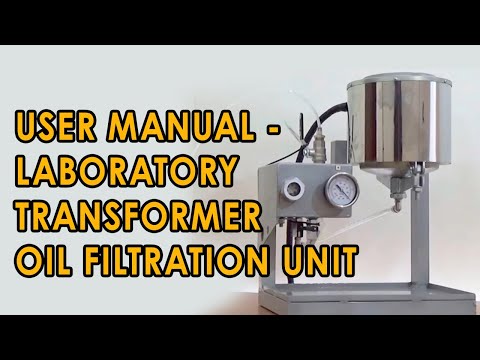

The unit consists of:
- oil filtration pod;
- frame;
- vacuum chamber;
- vacuum pump;
- piping;
The filtration pod is a vessel, half-filled with sorbent which regenerates the percolating oil. Sorbent and oil are put into the pod from the top.
The bottom of the pod has a lid, through which the pod is evacuated and from which saturated sorbent is extracted. The regenerated oil is pumped out from the bottom as well.
The external surface of the pod is wrapped with an electric heater tape and insulated.
The frame is a metal structure supporting all the unit’s components.
The Vacuum chamber is a rectangular vessel filled with regenerated oil. The top part of the vessel is equipped with a ball valve to connect the chamber with the vacuum pump. The bottom of the vessel is equipped with a ball valve, through which the oil is sucked into the vacuum vessel, and a valve to drain the oil. The vessel is also equipped with a visual liquid level meter and a vacuum gauge.
The Vacuum pump creates vacuum in the vacuum chamber.
| № | Name of parameter | Value |
| 1 | Regeneration productivity, l/h:
– transformer oil – industrial oil * |
3-5* 2-4* |
| 2 | Regenerating powder consumption in % from the weight of cleaning oil
– transformer oil – industrial oil * |
3-10* 3-10* |
| 3 | The weight of regenerating powder for filling, kg | 3 |
| 4 | Loss (oil product) in % from initial volume (that what remains in a sorbent)
– transformer oil – industrial oil |
1-5 1-5 |
| 5 | Total capacity of heaters, kW | 0,16 |
| 6 | Rate capacity, kW | 1,0 |
| 7 | Voltage of the one-phase alternating current main with a frequency of 50 (60) Hz, V | 220 |
| 8 | Overall dimensions, mm not more
– length – width – height |
500 550 750 |
| 9 | Weight, kg not more | 50 |
- compact size;
- easy transportation;
- connects to a normal power socket;
- cleans oil samples on-site;
- quiet operation.
