CMM-10 mobile oil plant

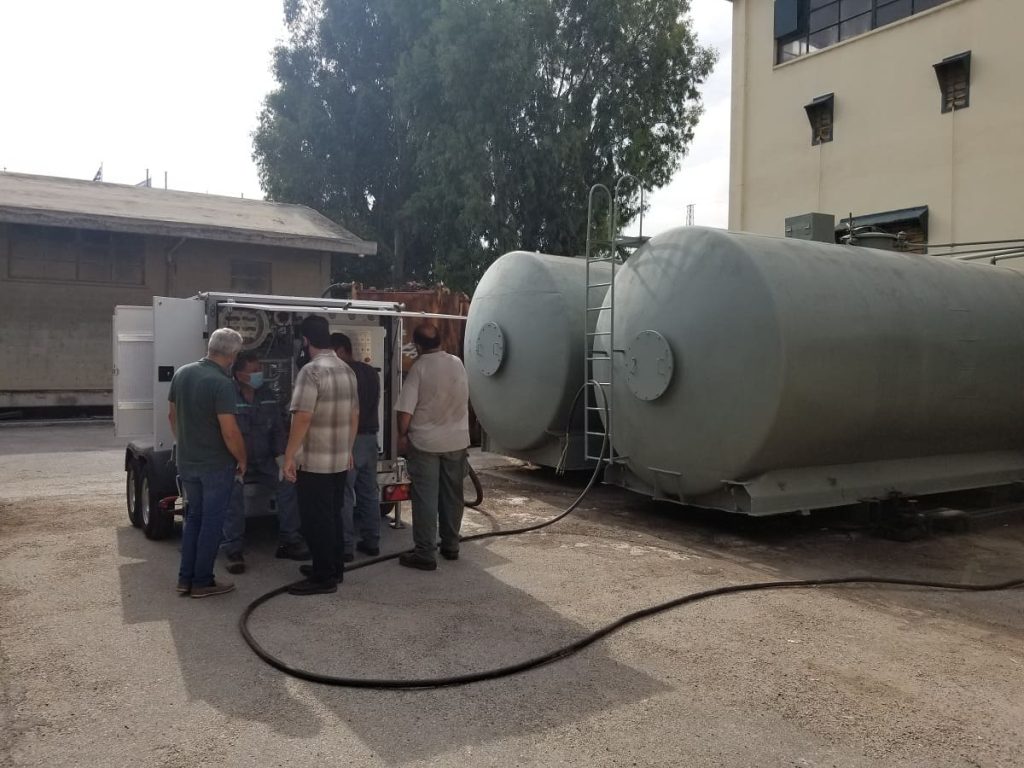

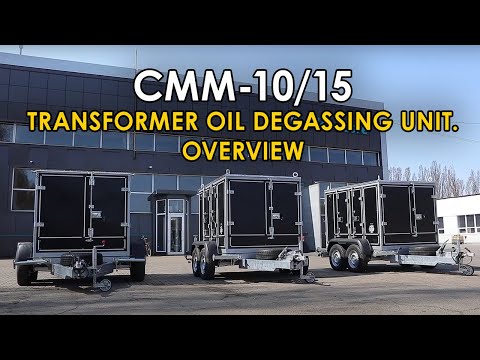

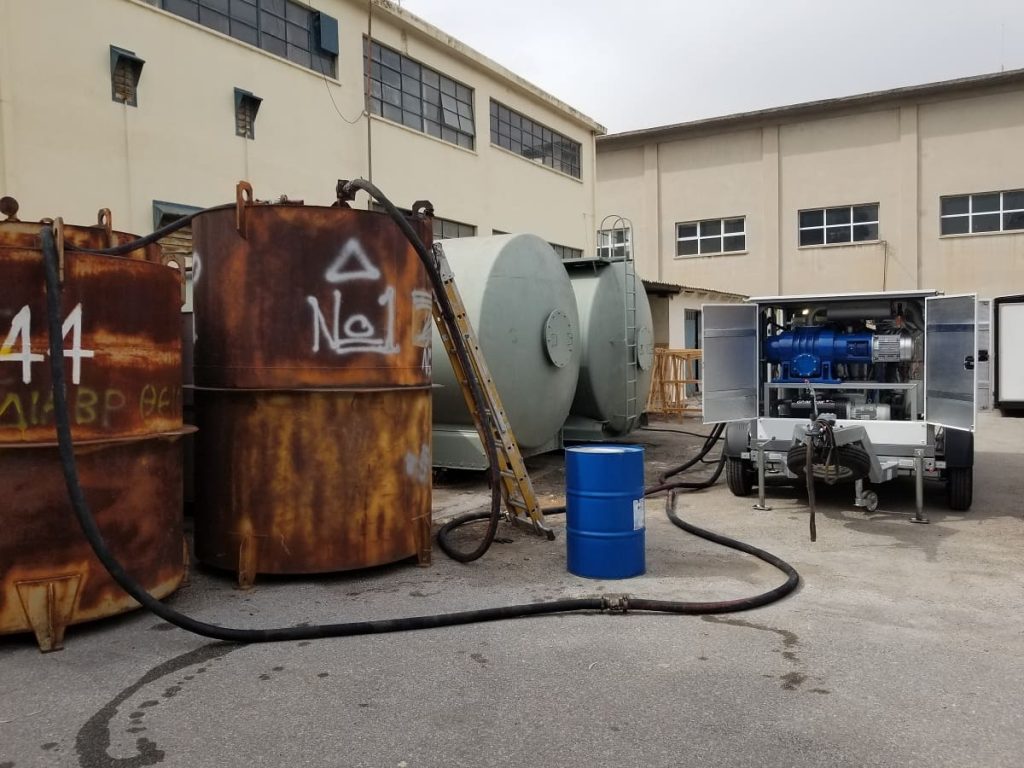

The unit is built as a self-contained unit with all components and operating assemblies protected by metal panels and easy opening gas-spring loaded doors on the sides and back of the unit. The “Containerized”unit is placed on a tandem axle trailer that is street legal and ready to be towed to any remote  location.

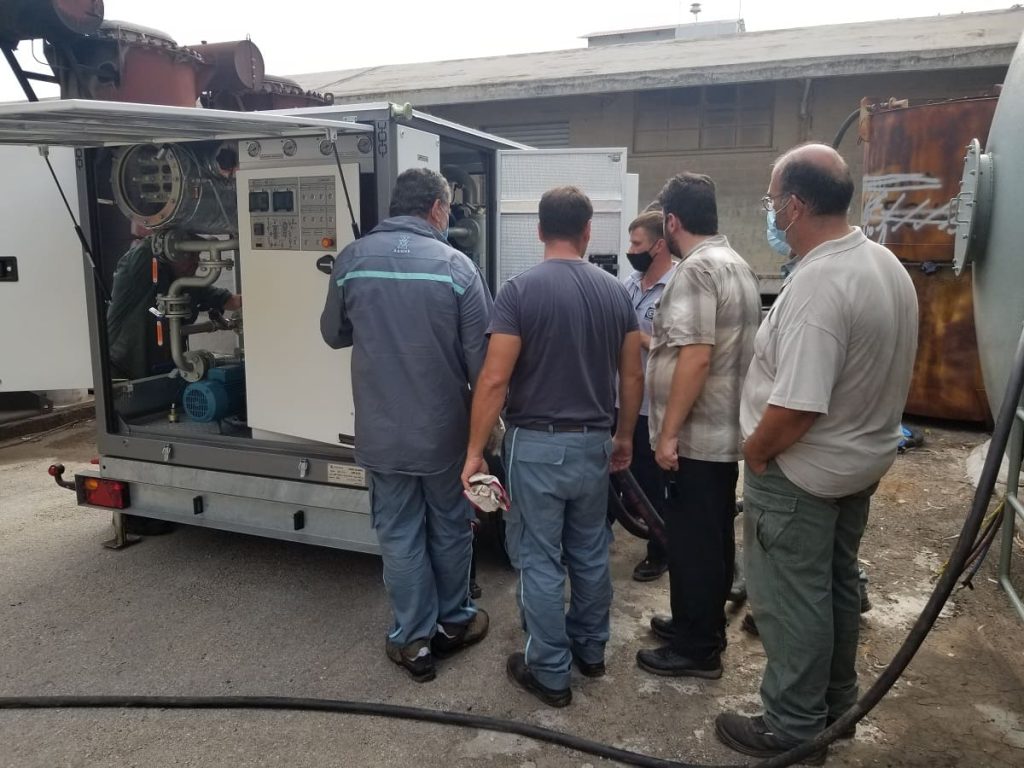

The unit consists of a vacuum chamber, input and output oil pumps, coarse and fine filters, oil trap, oil heater, pipelines with valves, vacuum pump section and a control cabinet.

Parameter Value
Capacity, m3/hour / gals. per hour:
  • degassing, drying and filtration mode
10/2642
  • heating and filtration mode
15/3970
Processed oil parameters*:
  • volumetric gas content %, max
0.1
  • mass moisture content, ppm, max
10
  • filtration fineness, micron
1
Oil output temperature in heating mode, ºС/ ºF 90/194
Outlet pressure, MPa 0.4
Oil heater power, kW 180
Max power consumption, kW 210
Residual pressure in vacuum chamber during degassing, mbar, max 267
Residual pressure in vacuum chamber during air tightness test, mbar, max 26.7
Air leak into the chamber in 1 hour, mbar max: 267
Electric power parameters
  • voltage, V
415
  • AC frequency, Hz**
50/60
Dimensions, mm/ft, max
  • length
4750/15’7’’
  • height
2100/6’11’’
  • width
2320/7’7’’
Weight, kg/lbs, max 3500/7735

Note: * initial oil parameters:

  • volumetric gas content – below 5%;
  • mass moisture content – below 01% (100 g/ton);
  • temperature – above 0 ºС/ 32 ºF.

**All equipment sold in the USA is designed to operate on 60 Hz AC Power

  • transformer oil dielectric strength increase to at least 70 kV;
  • transformer drying with simultaneous oil processing;
  • initial filling of electrical equipment with insulation oil;
  • evacuation of transformers and other electrical equipment;
  • simple operation and servicing.
